Product Type PT Classic
Cable 0.019"
Brand Celesco
Spring tension 5
Electrical Connection M6
Housing Aluminum
Detail

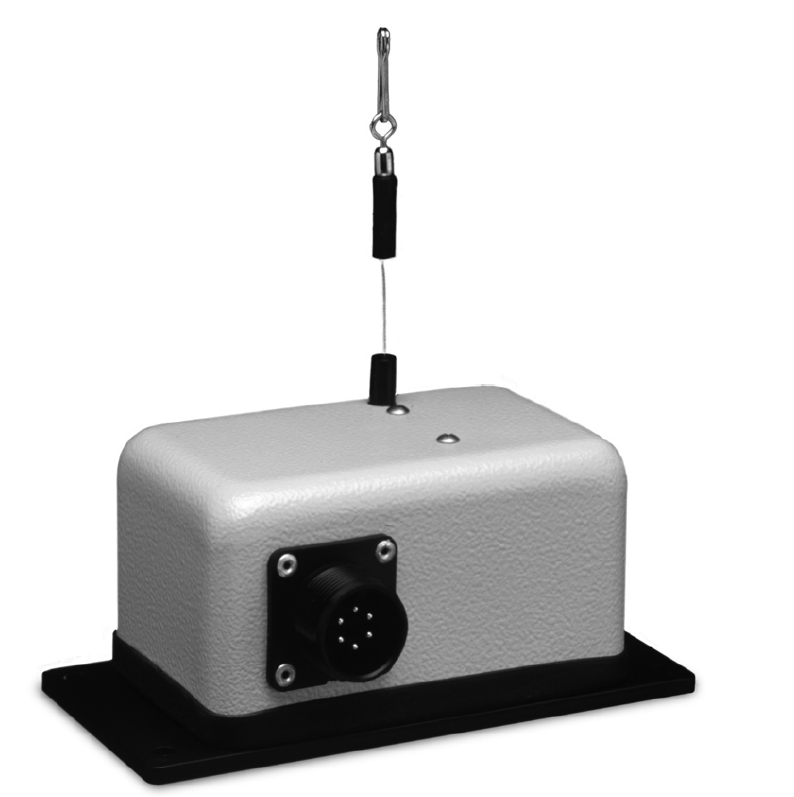

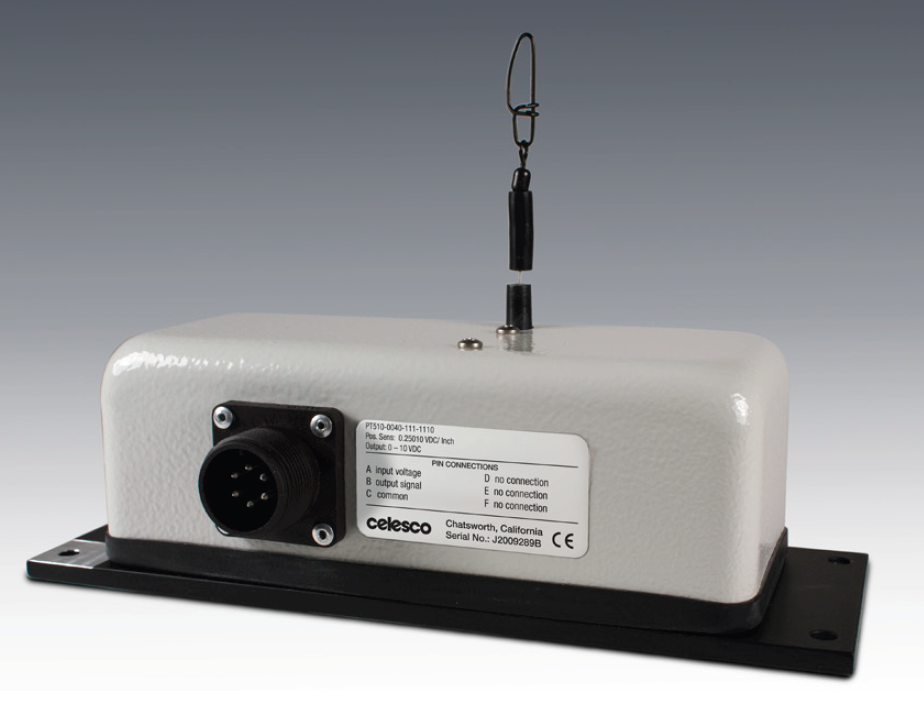

Absolute Linear Position • Classic Stringpot Design


Based on Celesco’s original string pot design dating back to the late 1960's, the PT101 has become a standard throughout

the years for literally thousands of applications including aircraft structural testing, hydraulic cylinder control, valve stem opening, and factory automation.

Available in full stroke ranges up to 100-inches, the PT101 provides a voltage feedback signal linearly proportional to the position of its traveling stainless steel measuring cable. Additionally the PT101 installs in minutes and doesn’t require perfect parallel alignment. Simply secure the base to a fixed surface and attach the measuring cable to your moving object.



Signal OutputDatasheet Download
PT101Voltage Divider

20220203

PT420
Analog 4-20mA

20220203

PT510
Analog 0-5VDC, 0-10VDC

20220203

PT150
Incremental Encoder

20220203

PT801Analog 4-20mA, Underwater

20220203




Datasheet Downloads
a125.pdf
716.9KB
633618.pdf
477.6KB
a250.pdf
731.2KB
accessories.pdf
270.2KB
ch25.pdf
690.6KB
