Product Type PT5
Cable All
Brand Celesco
Spring tension 10
Electrical Connection M6
Housing Aluminum
Detail

The PT5

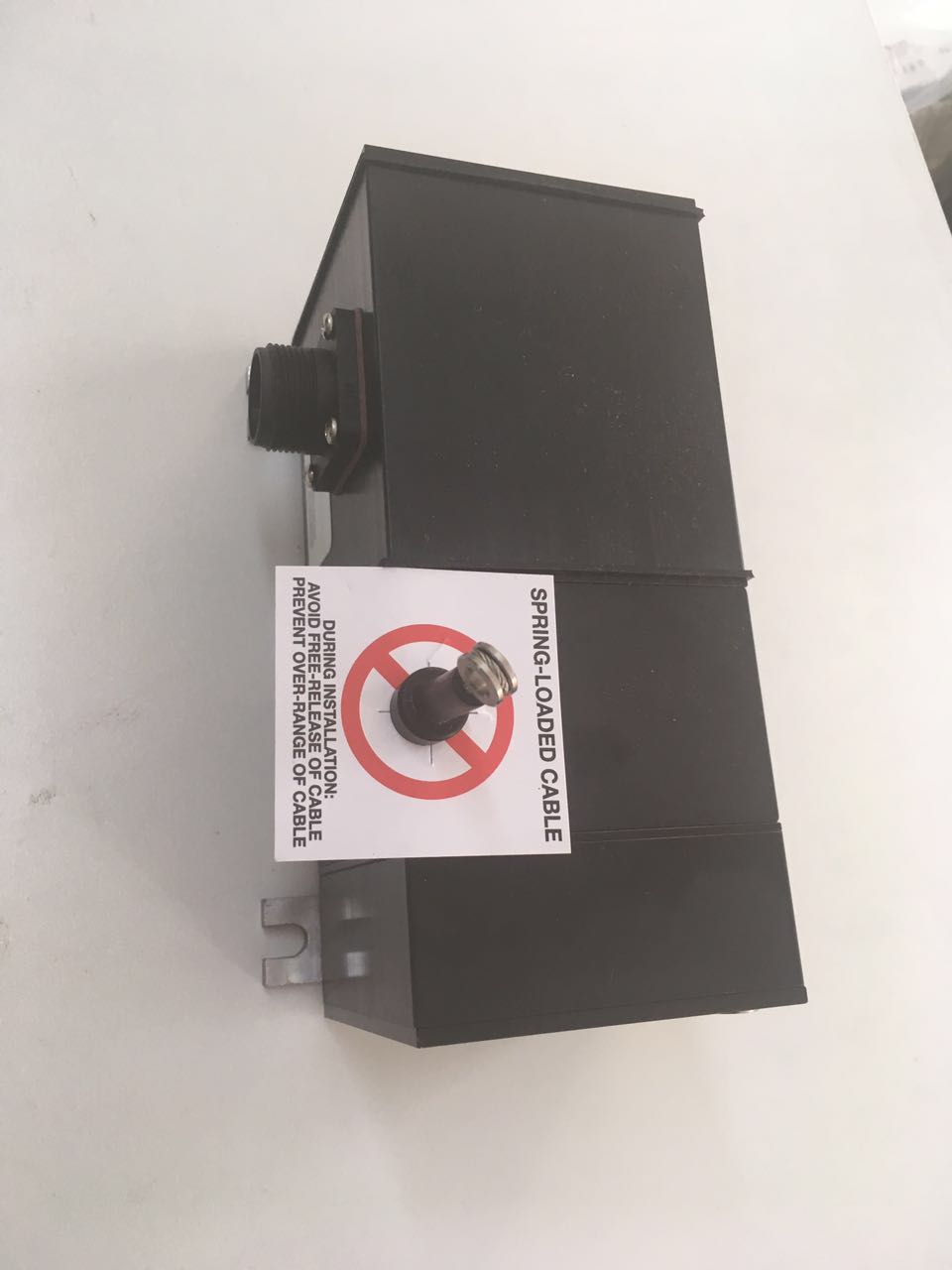

The PT5MA potentiometric cable-extension transducer uses a unique thermoplastic cable that has virtually an infinite fatigue life. This cable, known as V62, has properties that are superior for high cycle and rugged applications.

Like Celesco’s other transducers, the PT5MA installs in minutes, functions properly without perfectly parallel alignment, and fits easily into small areas. The PT5MA offers additional installation flexibility since its cable exit can be rotated relative to the mounting surface, providing four different cable exit orientations.



Below Options Stock Available

PT5MARABCD

RangeMeasuring Cable
Cable ExitOutput SignalsElectrical Connection

10N34, Ø.034-inch nylon-coated

stainless steel rope

UP, up420E, 4...20mAM6, 6pin plastic connector with mating plug

15S47, Ø.047-inch bare

stainless steel rope, all range up to 150 inches

DN, down420R, 20...4mAM6M, 6pin metal connector with mating plug

20V62, Ø.062-inch thermoplastic, all range up to 150 inchesFR, front



25
BK, back



30





40





50





  60







   80







100







125






150





200





250
